Hotchkis 63-66 GMC 2wd / 63-66 Chevrolet 2wd / 67-72 GMC Pickup / 67-72 Chevrolet Pickup C-10 TVS

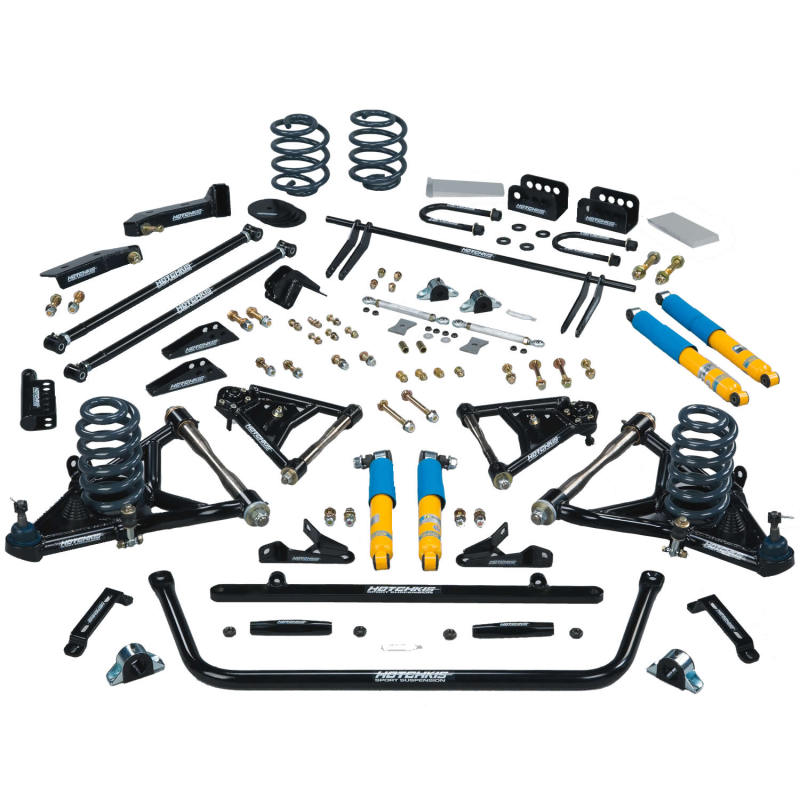

Nothing beats the Hotchkis Sport Suspension Total Vehicle System. This kit has been rigorously designed and tested on the track yet is very comfortable for your local cruise in. Every aspect of the C-10 suspension has been re engineered for the maximum performance and is being offered in a complete tuned package. Contains Tubular Upper Control Arms Tubular Lower Control Arms redesigned to extend wheelbase 1.8 in. and add up to +9 deg Caster. 4130 CNC Machined Cross Shaft / w Bronze Bushing and Delrin Bushings. Includes fabricated center link and heavy duty tie rod sleeves to eliminate bump steer. 1-7/16 in. Front Sway Bar 4 in. Lowered Front and 6 in. Lowered Rear Springs. Front and Rear Hotchkis Tuned/Bilstein Shocks with relocator brackets for maximum efficiency. Rear Adjustable Track Bar Rear Anti Squat Bracket System Unique Blade Style Rear Sway Bar System for the ultimate handling 63-72 C-10 Pickup. In front we start out with Tubular Upper and Lower Control Arms which extend the wheelbase 1.8 in. and increase caster alignment up to +9 deg. The camber curve is improved and bump steer is corrected with a new center link assembly and heavy duty tie rod sleeves. 4 in. front sport lowering springs and a 1-7/16 in. front sway bar reduce body roll and control the bumps along with the Hotchkis Tuned/Bilstein shocks and shock relocator brackets. The rear of the truck gets an adjustable full length track bar set up an adjustable anti squat bracket system improving the trucks instant center for maximum traction. 6 in. rear sport lowering springs and a 34 in. blade style sway bar reduce body roll while shock relocators and the Hotchkis Tuned Bilstein shocks effectively control suspension dampening. This system is a proven autocross winner and designed for maximum performance improvement in a installer friendly kit. PROUDLY MADE IN THE USA.

This Part Fits:

Year	Make	Model	Submodel
1972	Chevrolet	Brookwood	Base
1963-1972	Chevrolet	C10 Pickup	Base
1967-1972	GMC	C15/C1500 Pickup	Base
1968	GMC	K15/K1500 Pickup	Base
2005	Nissan	350Z	35th Anniversary Edition
