AMS Performance Alpha 14X R35 GTR Turbo Kit with .83 A/R Housing (G30 770)

Updated for 2020, the AMS Performance Alpha 14x kit comes STANDARD with G30-770 Garrett? G-Series turbos, 3.5? Downpipes, 4? Carbon Fiber Intakes, and 4? Turbo inlets which is capable of producing over 1275 WHP. The competition can?t compete with Alpha on engineering or on the track. All of the things that are standard on our 14x kit costs you thousands extra with the competition. Prepare yourself for an over 1275 WHP capable 4-wheeled rocket that spools faster using the newest Garrett? G-Series turbos. The Alpha turbo system upgrades for the R35 Nissan GTR have been engineered from the ground up to create a line of turbo kits that would redefine GTR aftermarket performance.

• TOTALLY REDESIGNED TURBO KITS FOR MAXIMUM HORSEPOWER
• UTILIZING NEWLY RELEASED G30-770 GARRETT© G-SERIES TURBOCHARGERS W/ 58MM INDUCERS
• CAPABLE OF 8 SECOND QUARTER MILE TIMES
• TOTALLY REDESIGNED MORE EFFICIENT EXHAUST MANIFOLDS

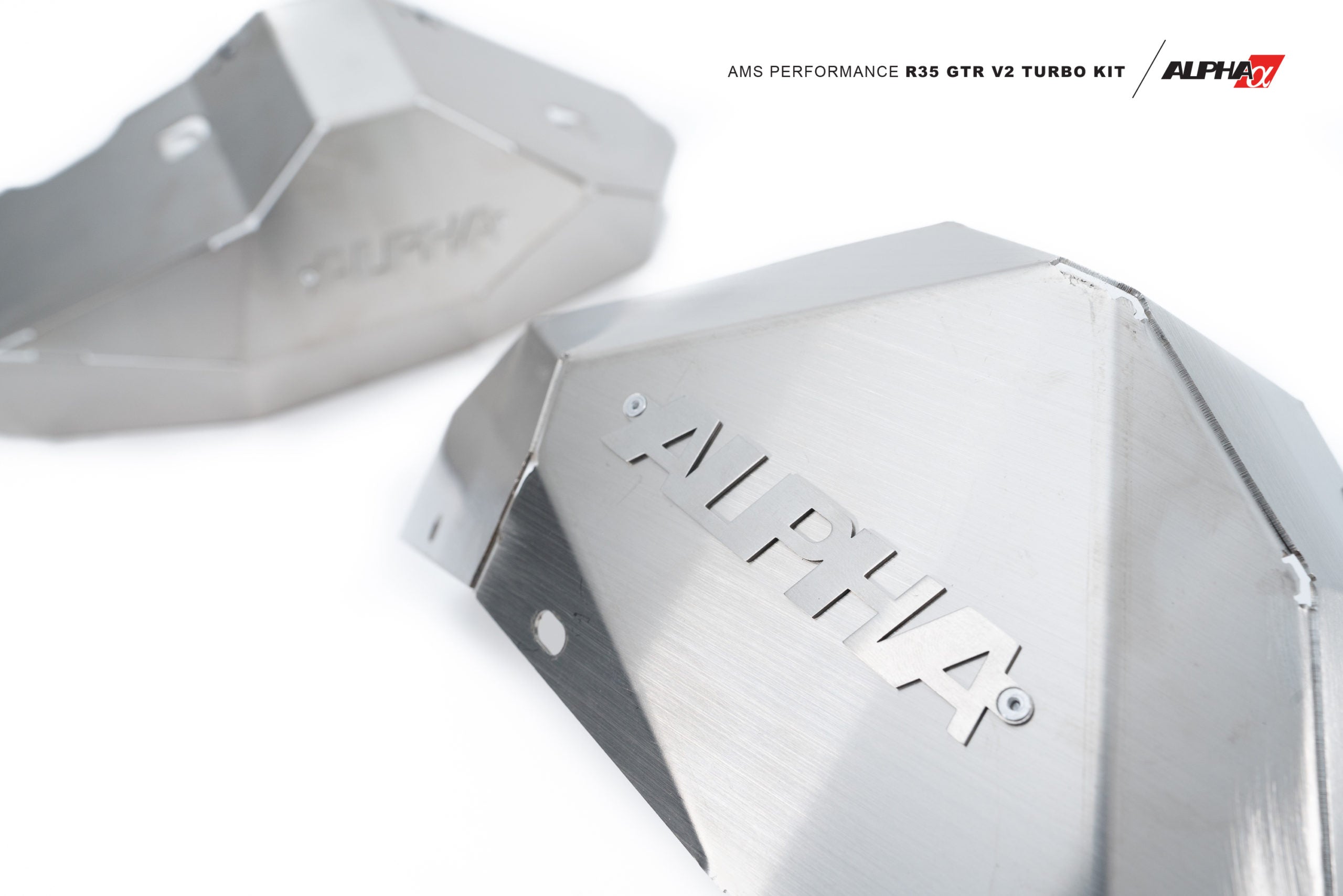

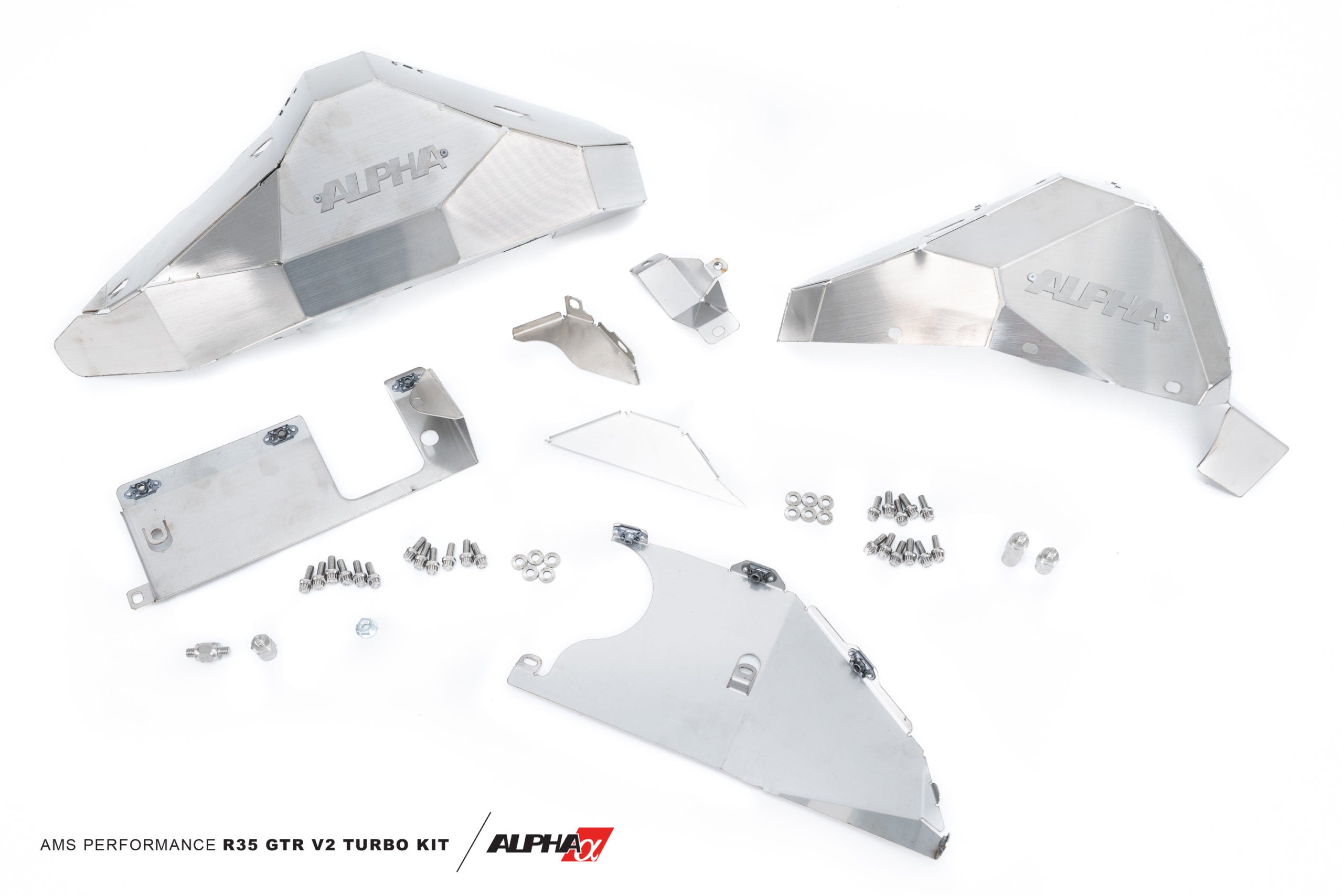

• LASER CUT HEAT SHIELDS AND LINE SHEATHS FOR SUPERIOR HEAT MANAGEMENT
• PARTS INCLUDED THAT COMPETITORS CHARGE EXTRA FOR
• MASSIVE 4″ ORGANICALLY SHAPED CARBON FIBER INTAKE DUCTS
• SHOW STOPPING DESIGN AND MATERIALS
• NO NEED TO HACK UP YOUR CHASSIS FRAME RAILS
• MODULAR DESIGN ALLOWS FOR FUTURE UPGRADE TO 15X OR 18X

ALPHA R35 GTR “X SERIES” TURBO SYSTEMS

Every part of the new Alpha 14x kit is now improved. From the exhaust manifolds, to the intakes, to the G-series turbos, to the downpipes, the kit was designed to spool faster, pull more air in, and get more air out making much more horsepower than the previous generation of turbo systems. Our Snailworks© Engineering Team has spent hundreds of R&D hours refining the Alpha “X Series” turbo systems to be the best performing, highest quality, and easiest to install kit on the market.

The Alpha 14x has been designed to allow for an easy upgrade path to both the 15x and 18x turbo kits. This modularity allows you to progressively work your power level up over time as you gain additional seat time and familiarity with the vehicle. These upgrade kits are available as a special order item at any time after your original turbo kit purchase.

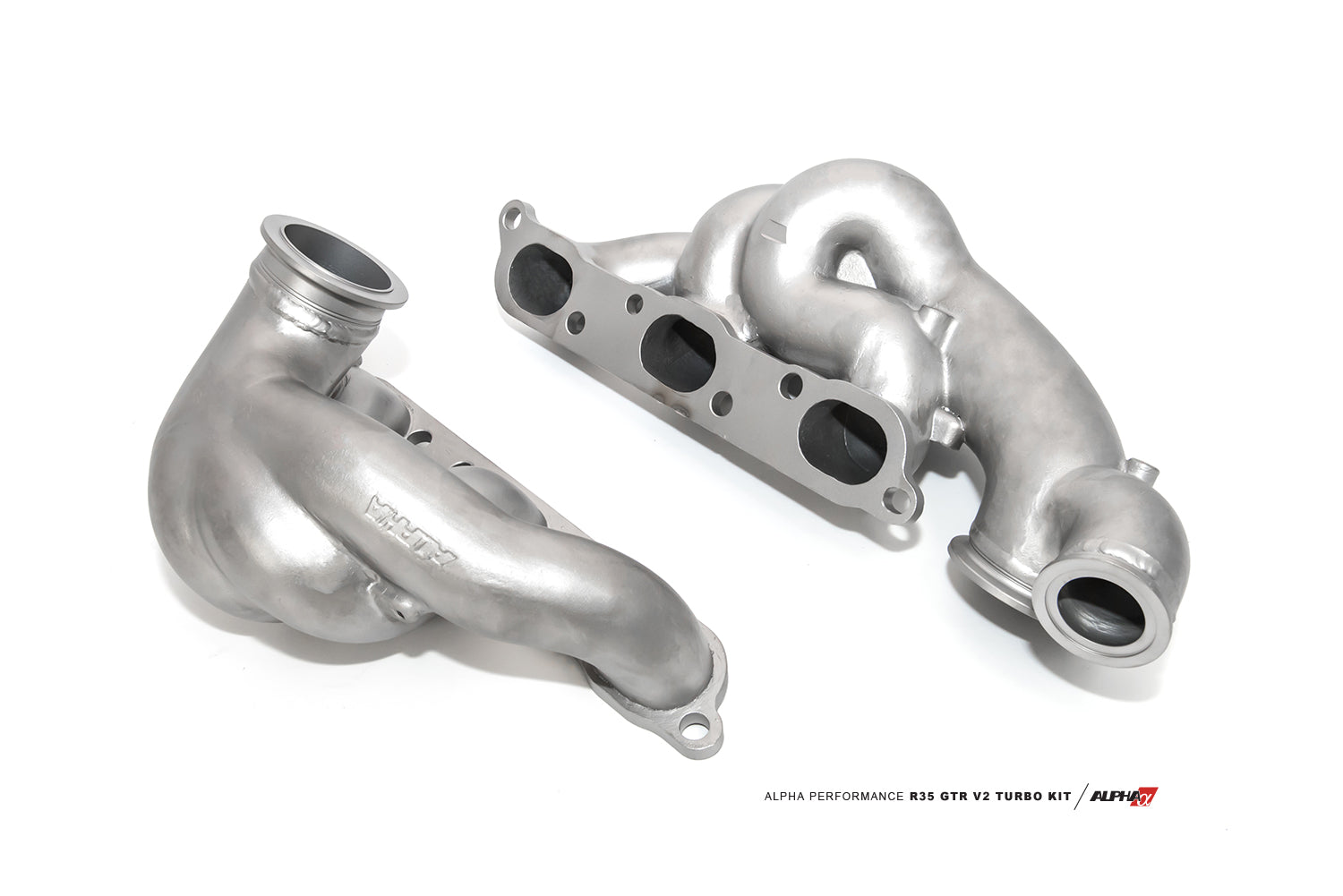

OUR TOTALLY REDESIGNED TUBULAR EXHAUST MANIFOLD

The new 14x kits feature 2.0 inch external diameter runners which yield a 1.7 inch internal diameter for our new turbo kits. They are not just larger but designed in a way to feed the exhaust gasses as efficiently as possible to the new “X” branded kit turbos. To improve the exhaust flow even further each of the manifolds have been through an extrude honing process, resulting in a smooth finish in the entirety of the manifold interior.

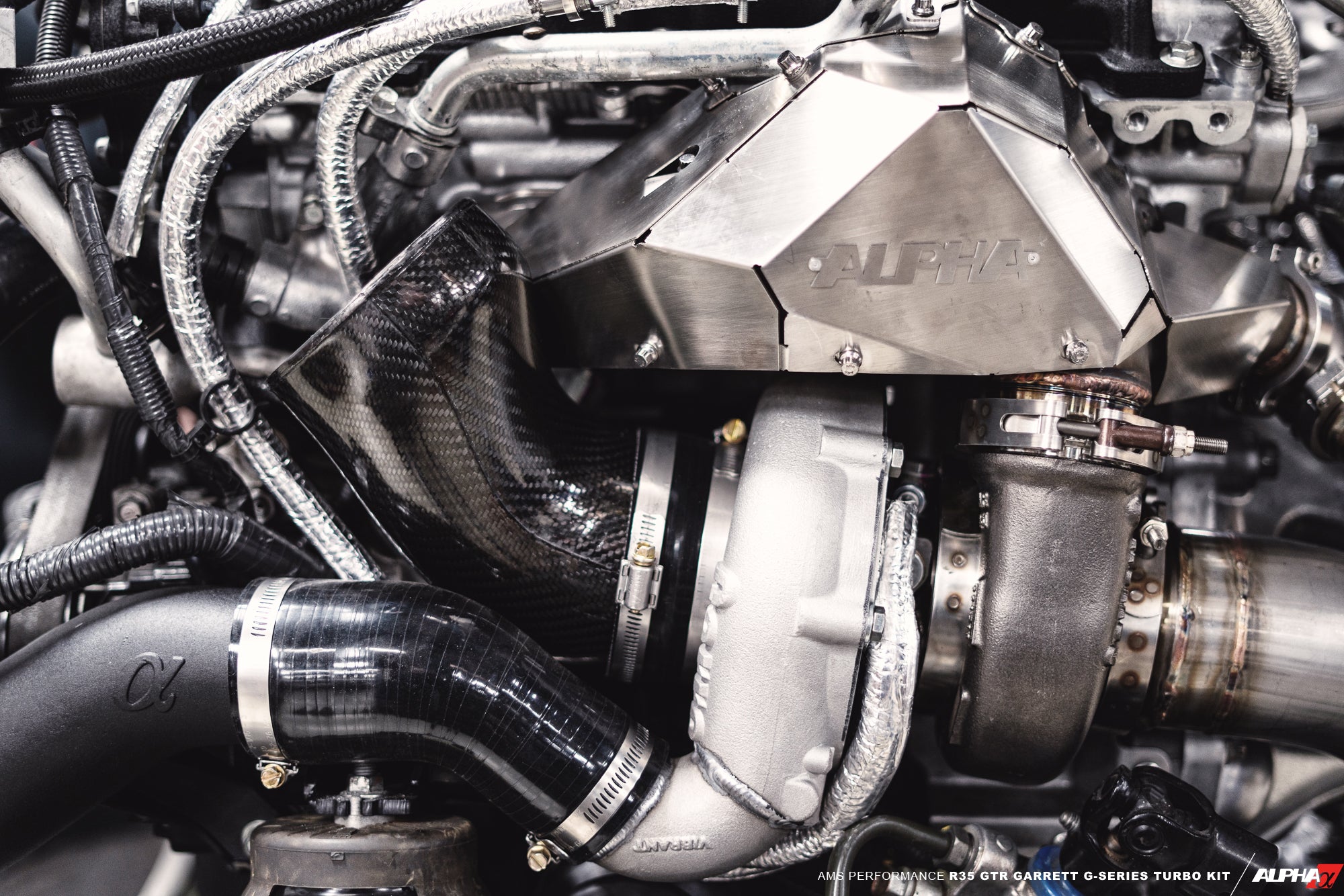

THE GARRETT© G-SERIES TURBOS AND 3 INCH INTERCOOLER PIPING

The new Garrett© G-Series turbos are a complete clean sheet redesign of the performance turbocharger lineup from Garrett©, with the intention of improving horsepower output while simultaneously decreasing spool time. Utilizing these cutting edge turbos on our turbo kits, matched with the benefits of our 4″ intakes, larger downpipes, and redesigned manifolds have shown staggering increases in horsepower compared to older technology from just a few years ago. The new G30-770 Alpha 14x kit is over 1275 whp capable! All this is accomplished without sacrificing anything in terms of spool up time or power delivery. The future is now! The new G-Series turbochargers feature new compressor wheel aerodynamics and new turbine wheel aero constructed of Mar-M alloy rated for 1055°C. By implementing race-proven Garrett© turbos we have successfully delivered you more horsepower throughout the entire powerband!

To further improve power output, the Garrett© G-Series Turbos use 4″ inlet and 2″ discharge compressor covers. This cover allows for greater airflow compared to a 3 inch cover found on many smaller turbo systems. The compressor discharge was maximized to allow the best possible flow given the space constraints of the GT-R. This is then fed into our high velocity cast 2.5 inch to 3 inch lower intercooler pipe. This new lower pipe offers you a drastic improvement in airflow vs its predecessor and transitions with the highest efficiency into 3″ intercooler piping.

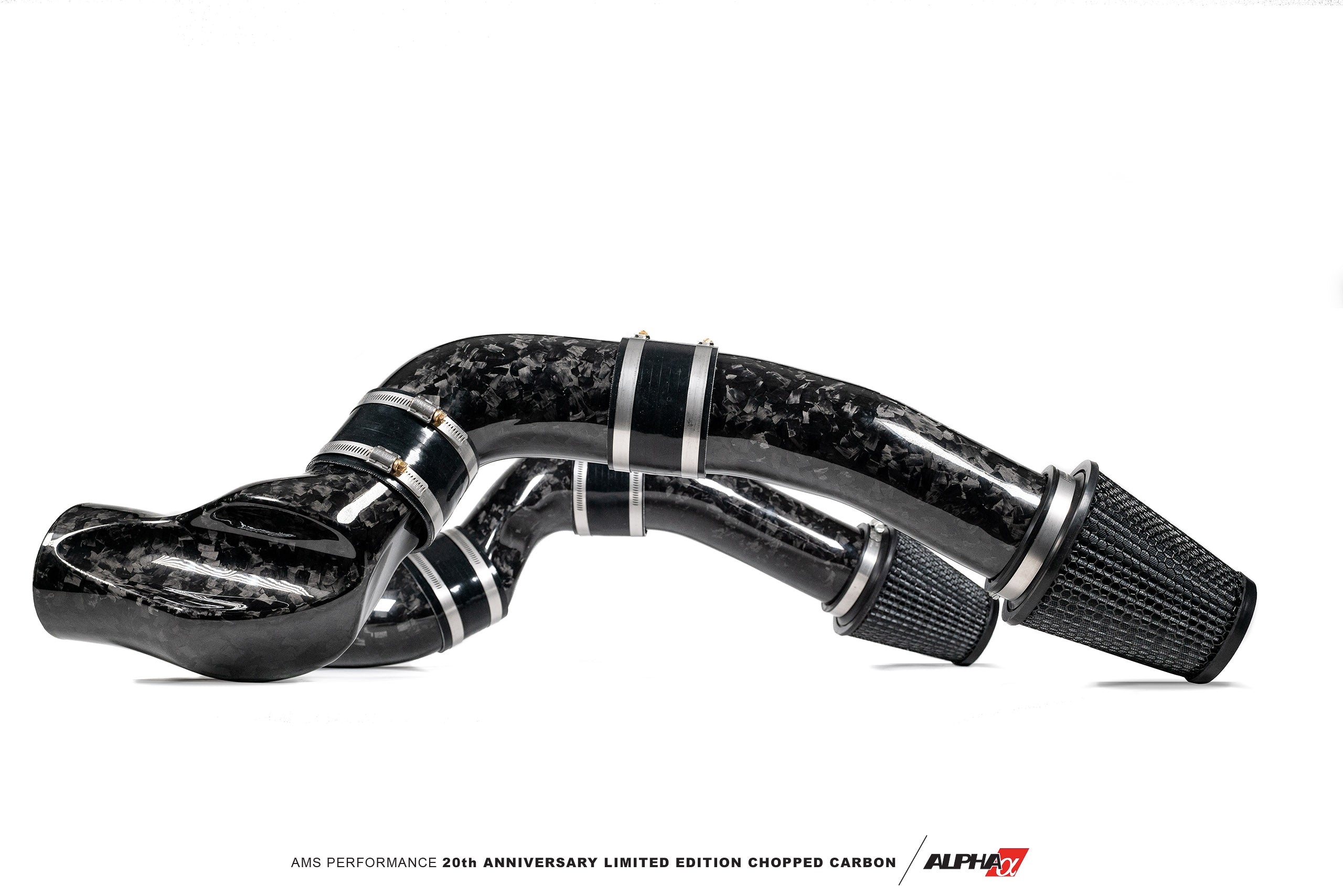

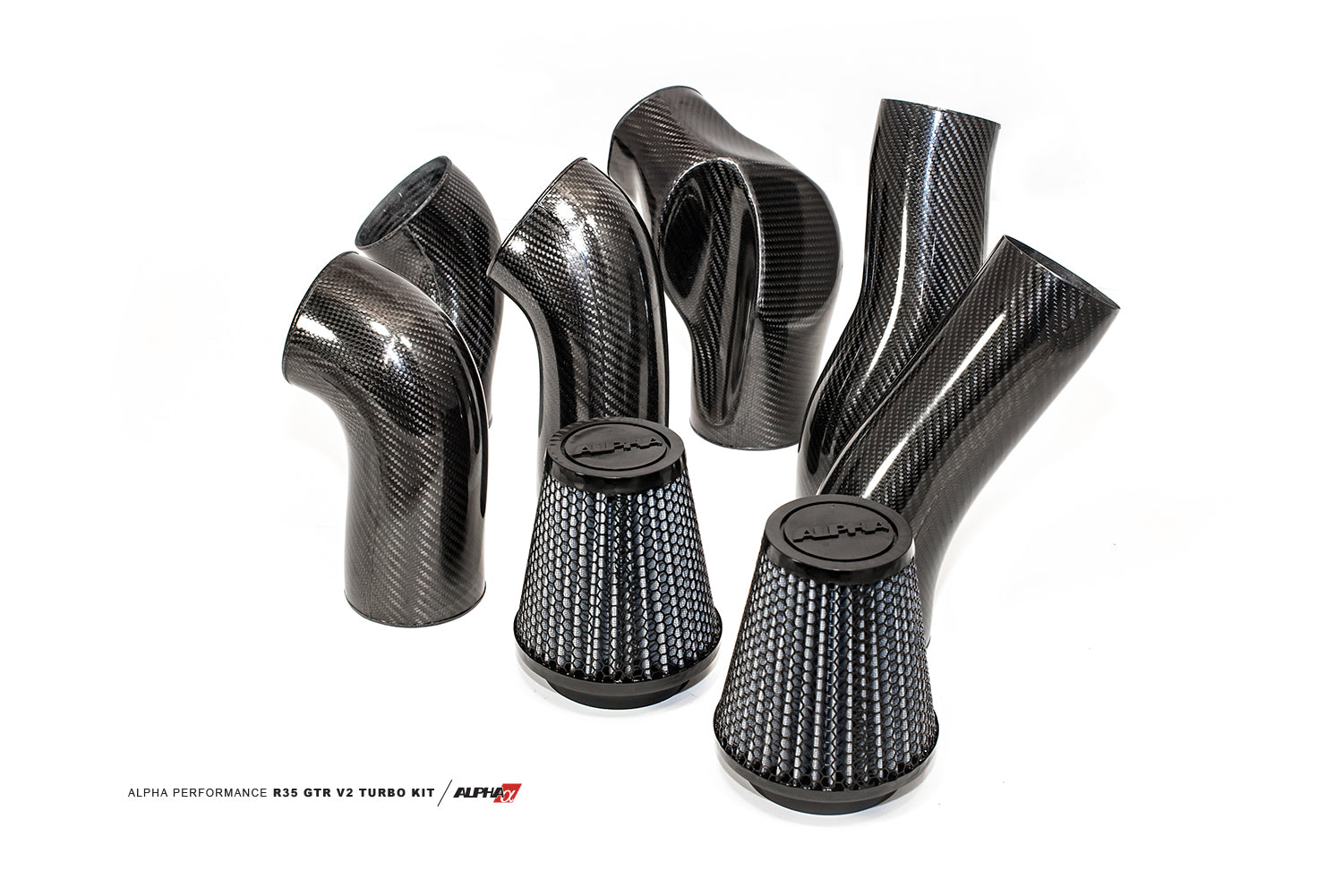

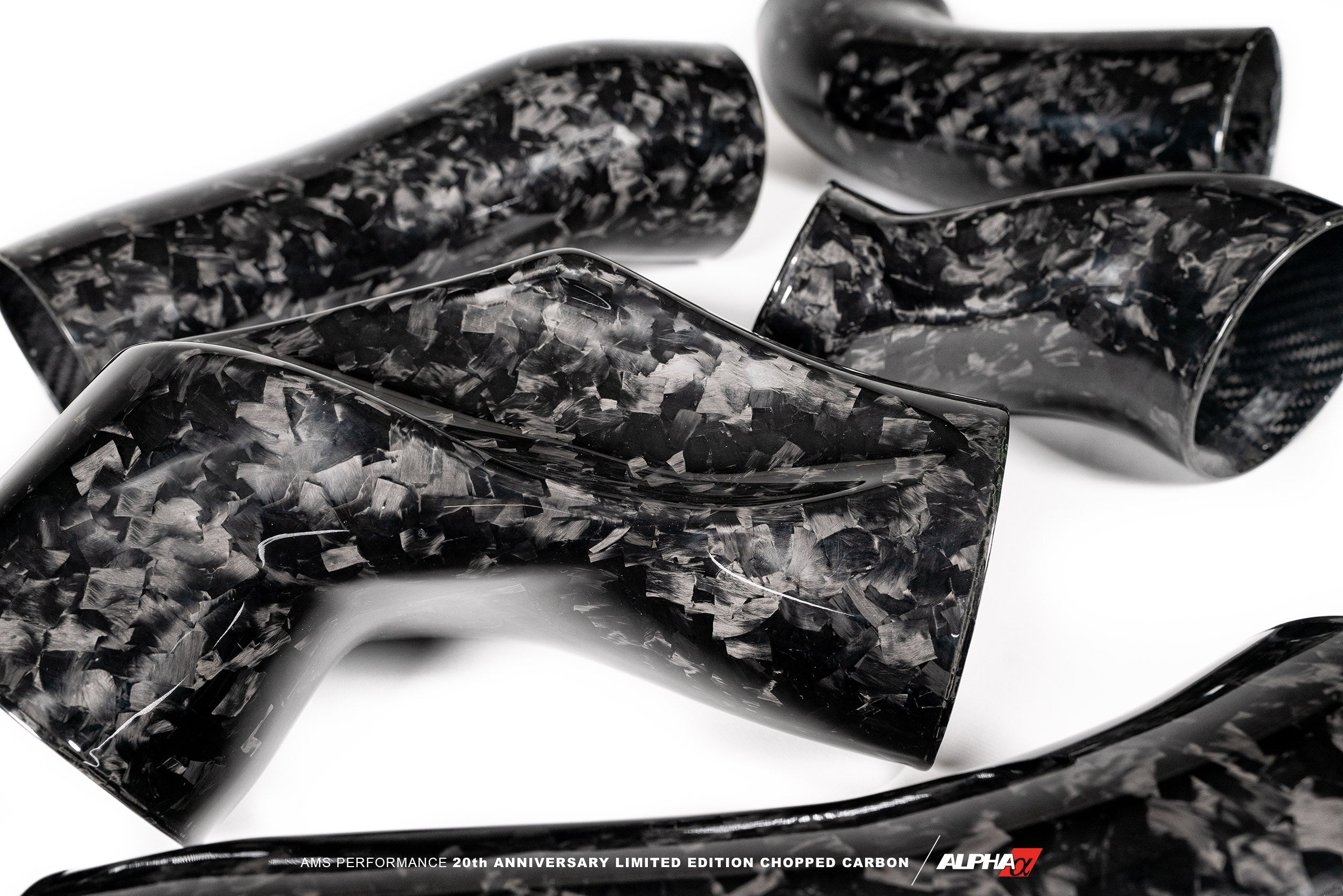

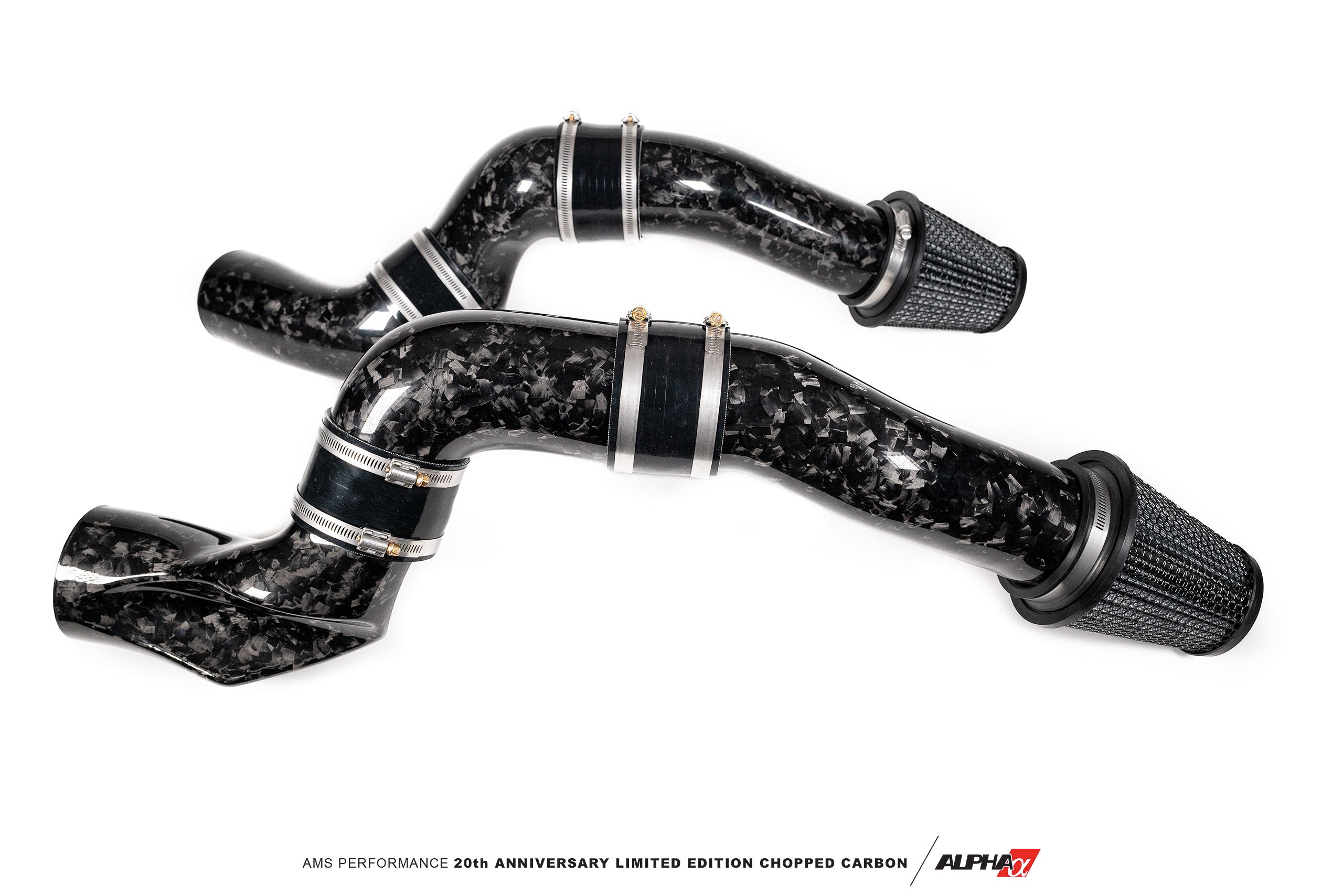

MASSIVE 4″ CARBON FIBER INTAKES

That large 4 inch compressor inlet on the turbo needs some more air to feed it. Anyone that has worked on a GT-R knows how tight it is trying to get 4 inch piping to a 4 inch compressor cover on a GT-R. Thankfully here at AMS we have the best resources available. By thoroughly laser scanning the confinements of the engine bay and designing the intakes in Solidworks© CAD (computer aided design) software, our Engineers were able to develop an organically shaped carbon fiber intake pipe to utilize all of the space available. While unconventional in its shape it has an actual 4″ cross sectional area throughout the entire pipe to deliver all the necessary air to the Alpha 14x turbo kit.

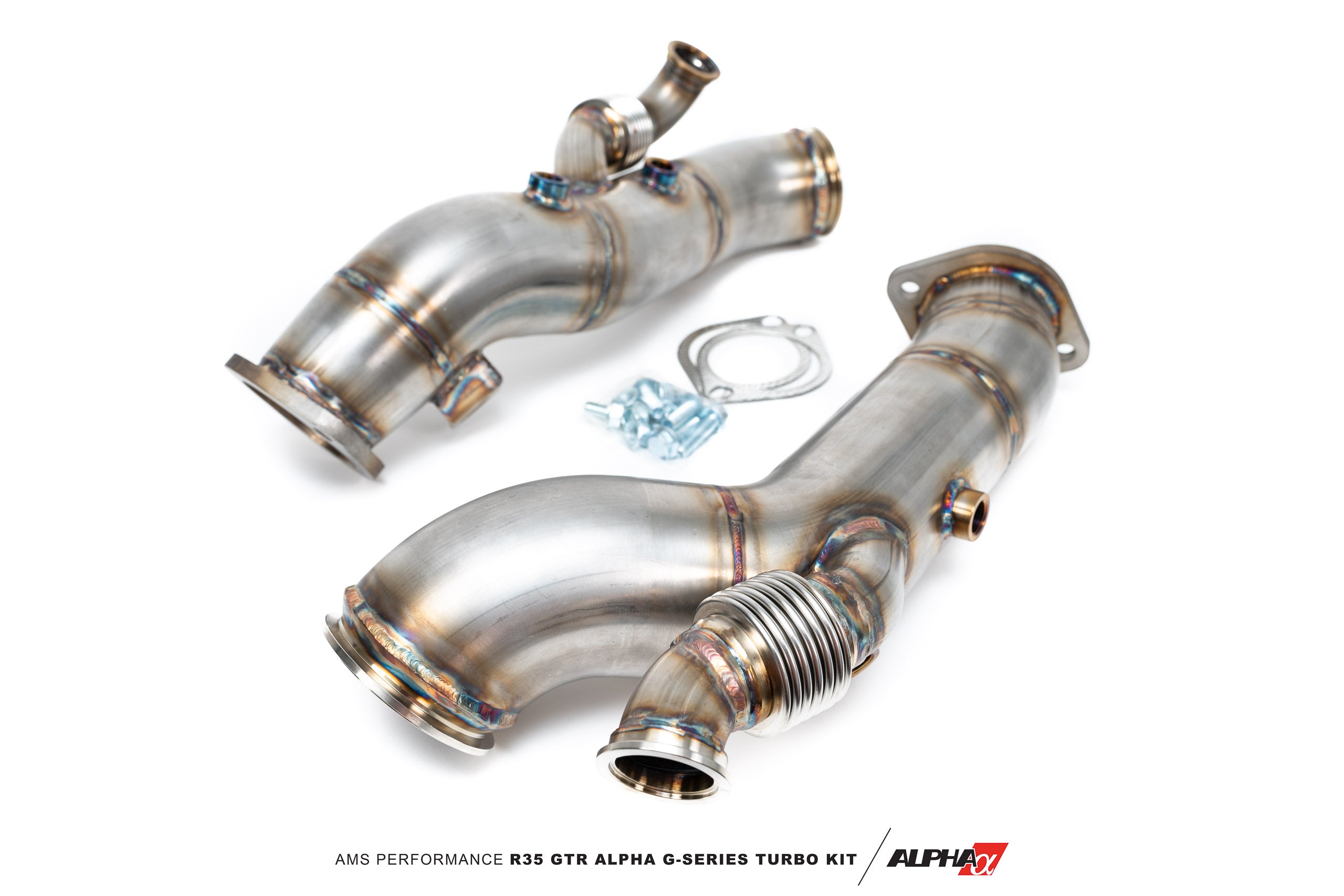

TIG WELDED 3.5″ STAINLESS STEEL DOWNPIPES

As another feature of our 14x Turbo Kits we have added 3.5 inch (90mm) T304 stainless steel downpipe set that will perfectly match your exhaust system. Our Snailworks© AMS Engineering Team designed a set of downpipes that taper from 3.5″ down to the exhaust flange which eliminates excessive back pressure. The included TiAL 38mm external wastegates recirculate exhaust gasses back to the downpipes through 1.5″ bellowed ports.

NO CUTTING OF THE FRAME RAILS, COMPATIBLE WITH A/C AND POWER STEERING

We developed the new Alpha 14x Turbo Kit to directly bolt in without hacking up your prized possession! Typically when you reach 1200+ HP levels drastic measures must be taken such as on our competitors kits where they start cutting frame rails, losing air conditioning etc. If you have to cut the frame rails on any kit below 2000+ HP levels in the stock location then its time to bring your car to AMS Performance.

KIT INCLUDES
