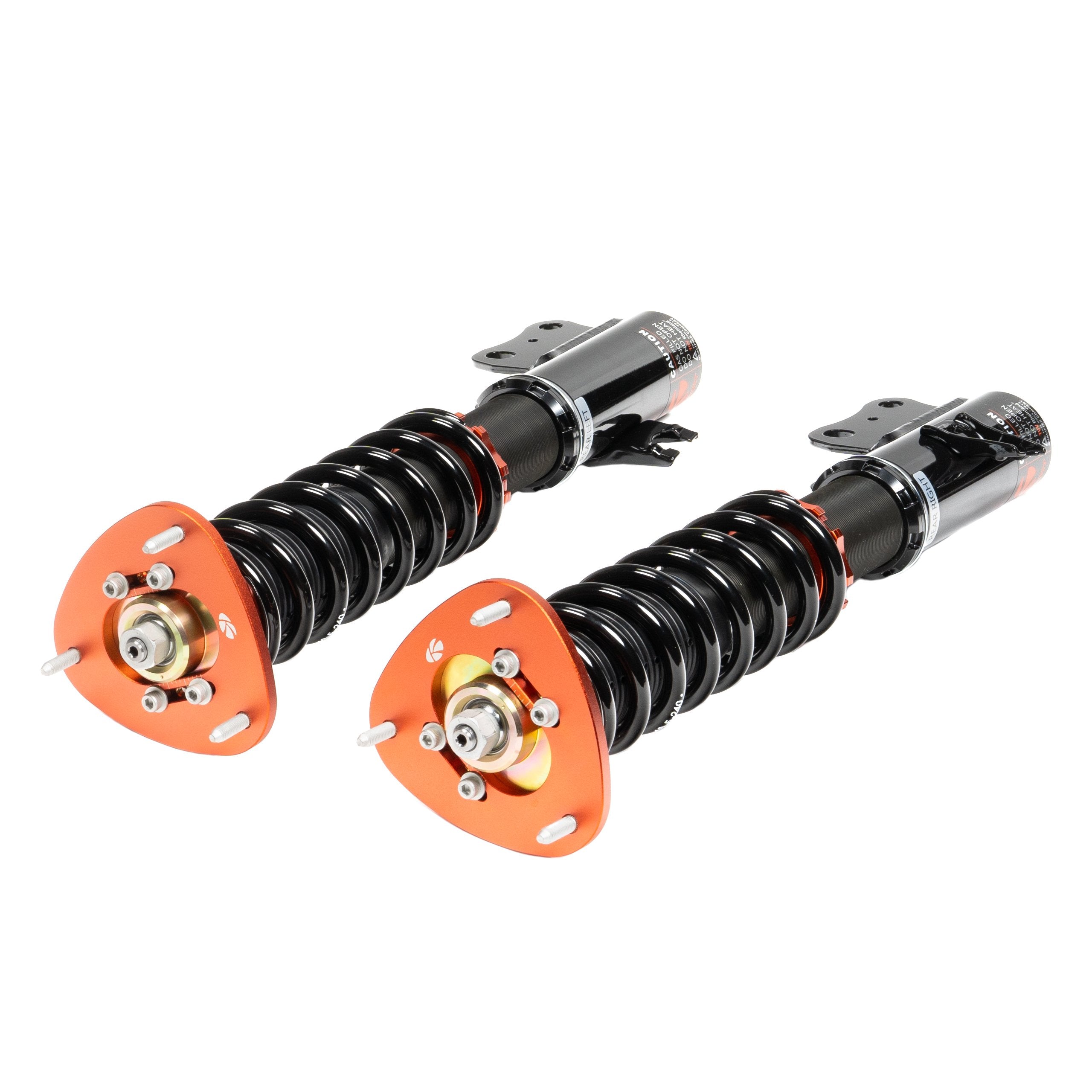

1991 - 1995 Nissan Pulsar Ksport Asphalt Rally Spec AR Coilover Kit - CNS190-AR

Ksport Rally AR Spec coilover System is designed specifically for asphalt rally competition. It features extended stroke, heavy-duty internals, and simultaneous compression and rebound adjustment. 36 levels of damping adjustment allow you to fine tune the ride to your handling and comfort needs. The damping adjusts compression and rebound simultaneously for ease of adjustment. Pillow ball top mounts in the front and rear on some applications allow you to maintain vehicle manufacturer suspension geometry design. The pillow ball top mounts also allow you a more direct feel for solid driver response. Camber adjustability is included on pillow ball top mounts that allow it for the ability to adjust camber from the actual coilover, instead of a separate camber kit. Most applications utilize an adjustable lower mount, which means you adjust height without losing suspension travel like some other coilover designs do. With the mounts and most pieces of the coilover being designed for 6061 billet aluminum the kit is lightweight, durable, and rust resistant. The steel shock body is electroplated with zinc to resist rust and the elements. The valving of each set is matched to the springs installed for unmatched ride quality and reliability. The Ksport system uses a Monotube design in which the oil and gas are separated within the cylinder. When compared to twin tube designs the Monotube dissipates heat better, allows finer damping adjustments, and requires more expensive design process. Aeration and cavitation are a lot less common in a Monotube design, which results in a better ride. Note: For many vehicles (but not all applications) the Ksport Rally Spec AR coilover system will allow your vehicle to achieve OEM height levels. Depending on application, your vehicle will be able to lower up to 3 inches from OEM level. This is a concern for people competing in rally events, as many sanctioning bodies have rules that pertain to ride height.

Top Mount Type (Front): Pillowball Mount with camber adjustment

Top Mount Type (Rear): Aluminum Mount no camber adjustment

Spring Rate Front kg/mm (F05 Attrib): 8.7
Spring Rate Rear kg/mm (F05 Attrib): 7.5

Application Fitment Notes
GTI-R

Features

Ksport Rally AR Spec coilover kits are designed specifically for asphalt rally competition.

Inverted steel shock absorber for increased response and heat dissipation

Large 55mm shock bodies and increased shock fluid volume for better cooling

Heavy duty steel lower mounts for stronger protection under aggressive track driving

All metal pillowball for added strength and responsiveness

36-way adjustable damping

Collars and upper mounts made from 6061 aluminum with T6 for increased hardness

Adjustable spring perch for height adjustment

Camber adjustment on many

Adjustable spring perch for height adjustment

Monotube high pressure design for better performance and heat dissipation

Electroplated body for added protection from corrosion and

Dust boot to protect damper seal
